Fermentation Process

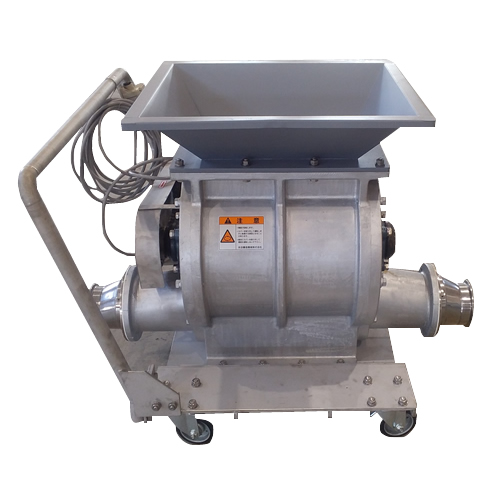

Pneumatic Transfer Device Locker Valve
This rotary locker valve functions as a constant feeder to supply a fixed amount of materials using air pressure.
Features
- (1) No air leak occurs at the top part.
- (2) The contact parts are Teflon-coated, which prevents residual adhesives and makes cleaning easy.
- (3) The water-cooling type is also available. You can choose it according to the characteristics of your materials.
- (4) The locker valve comes in three different materials - iron, aluminum and stainless steel. You can choose any of them according to your needs.
Specification
| Model | Capacity (t/h) | Bore (mm) | Size (mm) | Power (kW) |
|---|---|---|---|---|
| L x W x H | ||||
| 1.0 | 2.0 | 100 | 600 x 1,050 x 820 | 1.5 |
| 2.0 | 3.0 | 125 | 600 x 1,050 x 820 | 1.5 |
| 3.0 | 5.0 | 150 | 600 x 1,140 x 900 | 1.5 |
