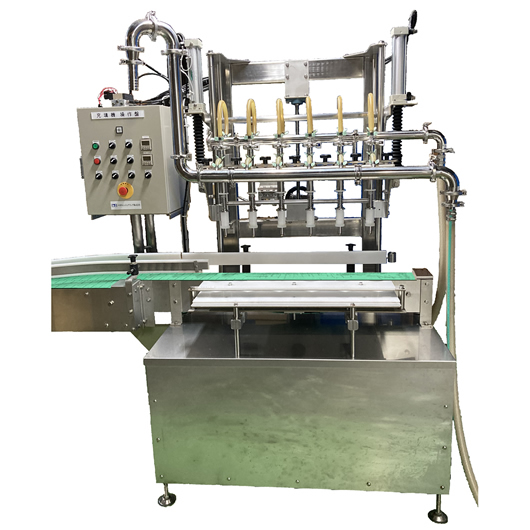

Automatic Filling Machine NNAP type

Automatic Filling Machine NNAP type

Outline
  • Easy-to-operate machine with Liquid level control and Automatic operation
  • Removable nozzle
  • Suitable for various types of bottles - both large (1.8 litter) and small bottles
  • The machine connected with the existing line would increase the filling capacity.
  • Heat-resistant resin pump (up to 60 degrees C)
  • 2440 W x 1785 H x 810 D
  • Air source 0.4 MPa or more, Power source 200 V
Specification
Model Filling capacity per hour
(1.8 l)
Filling capacity per hour
(720 ml)
NNAP-5
(5 bottles)
Approx. 700 bottles Approx. 1,400 bottles
NNAP-8
(8 bottles)
Approx. 900 bottles Approx. 1,800 bottles
NNAP-10
(10 bottles)
Approx. 1,200 bottles Approx. 2,400 bottles
