Products
Bottle Filler

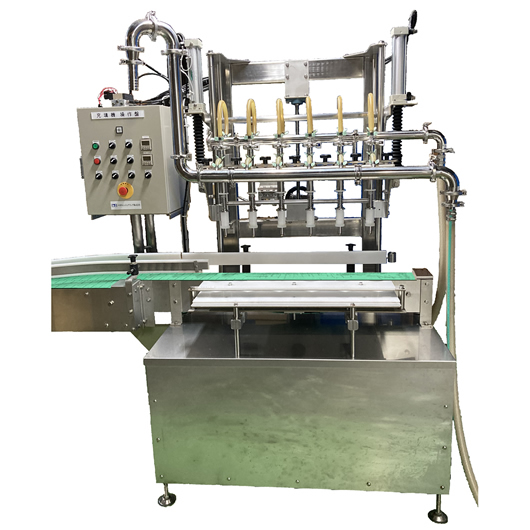

Automatic Filling Machine NNAP type
NNAP-5(5 bottles) Easy-to-operate machine with Liquid level control and Automatic operation
Removable nozzle
Suitable for various types of bottles - both large (1.8 litter) and small bottles
The machine connected with the existing line would increase the filling capacity.
Heat-resistant resin pump (up to 60 degrees C)
2440 W x 1785 H x 810 D
Air source 0.4 MPa or more, Power source 200 V
Specification
| Model | Filling capacity per hour (1.8 l) |
Filling capacity per hour (720 ml) |
|---|---|---|
| NNAP-5 (5 bottles) |
Approx. 700 bottles | Approx. 1,400 bottles |
| NNAP-8 (8 bottles) |
Approx. 900 bottles | Approx. 1,800 bottles |
| NNAP-10 (10 bottles) |
Approx. 1,200 bottles | Approx. 2,400 bottles |
NAGATA BREWING MACHINERY
TEL:078-995-4700
2-1-1 Mitsugaoka, Nishi-ku, Kobe 651-2228
